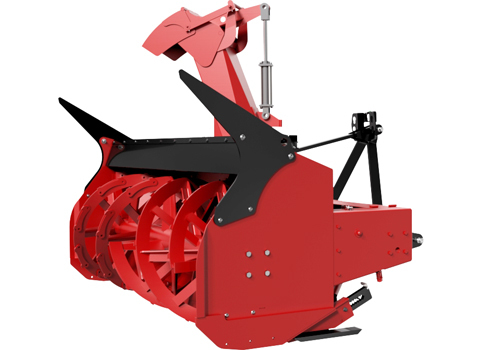

P-92130-GV / P-92130TRC-GV

P 92130 Gv

Working width

92" / 2336 mm

HP recommended

75 to 95 HP PTO

Cutting height 42" / 1066 mm
Drum diameter 30" / 762 mm
Weight Reg : 2361 lbs / 1073 kg TRC : 2511 lbs / 1141 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 7486

PSIG-7486

Pcg 7486

PCG-7486

Prp 92104 2

PRP-7486-2

Prp 92104

PRP-7486

Pct 7486 Hd

PCT-7486-HDB

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-7486
Quick attach industrial chute with greasable hinges and access panel (removable) PCG-7486
  • 24" Extension for industrial chute
PRP-7486-2
  • 48" Extension for industrial chute
PRP-7486
Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. PCT-7486-HDB
  • Mounting kit for working light on telescopic chute.
PKL-IND-7486

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Lynx Def Hyd

25TR08

Hydraulic cylinder 25TR08

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor for pump with more than 12 GPM (with cushion valve and unidirectional restrictors) MLH-315-R

HOSE KITS

Pkb

PKB-GR3

Pkb

PKB-GR3TRC

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR3
Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR3TRC
Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3-T
Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3TRC-T

SCRAPER BLADE

Sit1gr2

SIT1-92

T1gr2

T1-92

T Vgr2

TV-92

Ss Tgr2

SST-92

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-92
Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened T1-92
Tivar scraper blade including mounting kit TV-92
Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-92

SKID SHOES

Phd

PHD-92104

Pshd

PSHD-92104

Pst

PST-92104

Industrial skid shoes with Hardox 450 soles PHD-92104
Skid shoes with ROCKTEC soles PSHD-92104
Skid shoes with stainless steel soles PST-92104

SPEED REDUCER

Prh 30 M 2

PRH-30M-2

Prh 25 M 2

PRH-25M-2

Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c PRH-30M-2
Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c PRH-25M-2

CHOICE OF POWER TAKE-OFF (PTO)

T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225
T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569
T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9569-1
V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225-V
V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569-V
T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9475
T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9475-1
T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9475-2
V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9598
V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9599
V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9604

HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)

Hydraulic motor (included on TRC model) MLH-315-R

IMPELLER HOUSING

Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel TBHD-3012
Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) TBHD-3012TRC

RUBBER DEFLECTOR FLAP

Rubber deflector flap located from the top of the frame to the auger. Reduces projections. TL-9298

CHOICE OF COLORS

Red PRONOVOST
Blue PG2-02
Orange PG2-04
Yellow INDUSTRIAL PG2-06
Green PG2-07
Black PG2-10

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

*Available only on a new snowblower made in production.

Roues Wheels 1

Complete specifications

HP recommended (min. - max.) 75 to 95 HP PTO
Working width 92" / 2336 mm
Cutting height 42" / 1066 mm
Hitch category 2
Cutting height of lateral blades 54" / 1371 mm
Impeller diameter 30" / 762 mm
Depth of drum 12" / 305 mm
Impeller housing contour : High quality steel Included
Number of impeller blades 5
Impeller shaft diameter 2" / 51 mm
Height of impeller center 20" / 508 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM - Opt. 1000 RPM
Number of augers 1
Main auger diameter 32" / 813 mm
Bearing / ductile iron housing 1 1/2" / 38 mm
Drive chain - Main auger 80
Number of shear bolts 1 for impeller and 1 for auger
Drum rotation for hydraulic motor (TRC only) MLH-315
Drive shaft included (optional) T80 (V80, T90 & V90)
Lateral blades - High quality steel Included
Scraper blade - High quality steel Included
Scraper blade - Semi-industrial made of Hardox 450 SIT1-92
Scraper blade - Industrial made of Hardox 450 T1-92
Scraper blade - Tivar TV-92
Scraper blade - Stainless steel SST-92
Adjustable skid shoes - Quick adjustment high quality steel Included
Adjustable skid shoes - Quick adjustment Hardox 450 PHD-92104
Adjustable skid shoes - Quick adjustment Rocktec PSHD-92104
Adjustable skid shoes - Quick adjustment stainless steel PST-92104
Chute - Regular PSIG-7486
Chute rotation system - Hydraulic motor kit (motor not included) MLH-315-R
Chute rotation maximum angle - Hydraulic motor rotation 270° à 335° adjustable
Antifriction for chute Ring
Deflector - Hydraulic cylinder 25TR08
Color Pronovost Red
Storage support Included
Weight including chute 2361 lbs / 1073 kg
Weight including chute (TRC model) 2511 lbs / 1141 kg
