LYNX-70

Lynx

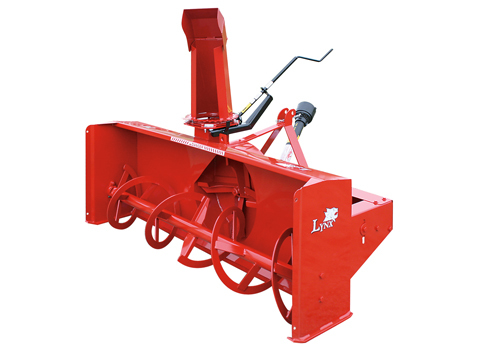

  1. Lynx A

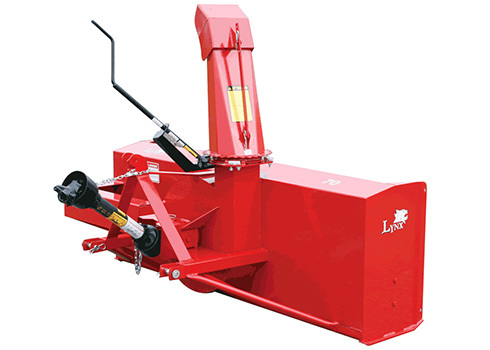

  2. Lynx B

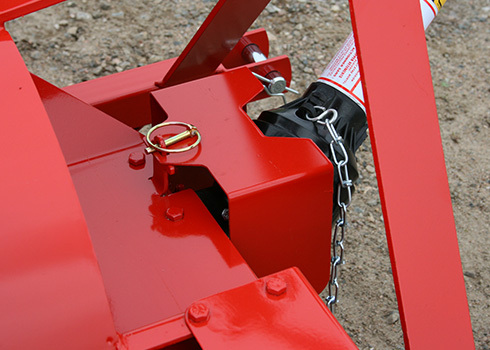

  3. Lynx C

Working width

70" / 1778 mm

HP recommended

16 to 25 HP PTO

Cutting height 25" / 635 mm
Drum diameter 21" / 533 mm
Weight 323 lbs / 147 kg
Add to compare
Download the flyer

Options

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

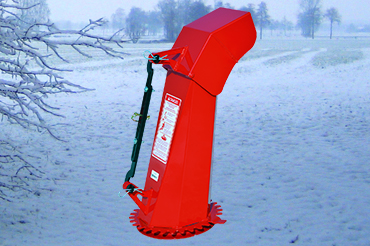

Lynx Def Man

Included

Lynx Def Hyd

25TR04

Lynx Def Elec

AE-04

Manual rod Included
Hydraulic cylinder 25TR04
Electric actuator AE-04

CHOICE OF CHUTE ROTATION

Lynx Rotation Manuelle

MD-4872

Lynx Rotation Hydraulique

HRD-4872

Img 1744

ERD-4872

Manual chute rotation kit MD-4872
Hydraulic cylinder chute rotation kit HRD-4872
  • Cylinder
25TR04
Electric motor chute rotation kit ERD-4872

HOSE KITS

Hose kit for hydraulic cylinder rotation. * Installation not included. PKB-PU4872-RC
Hose kit for deflector cylinder. * Installation not included. PKB-PU4872-C

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd1

Complete specifications

HP recommended (min. - max.) 16 to 25 HP PTO
Working width 70" / 1778 mm
Cutting height 25" / 635 mm
Hitch category 1
Impeller diameter 21" / 533 mm
Depth of drum 6" / 152 mm
Impeller housing contour : High quality steel Inclus
Number of impeller blades 4
Impeller shaft diameter 1" / 25 mm
Height of impeller center 13" / 330 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM
Number of augers 1
Main auger diameter 14" / 356 mm
Bearing / ductile iron housing 1" / 25 mm
Drive chain - Main auger 50
Number of shear bolts 1 for impeller + 1 for auger
Drive shaft included (optional) T20
Scraper blade - High quality steel Included 3/8" x 1 1/2" welded
Adjustable skid shoes - High quality steel Included
Chute - Regular Included
Chute rotation system - Manual kit Opt.
Chute rotation system - Hydraulic cylinder kit (cylinder not included) Opt.
Chute rotation maximum angle - Manual rotation 255°
Chute rotation maximum angle - Hydraulic cylinder rotation 240°
Antifriction for chute Included : blocs
Deflector - Manual Included
Deflector - Hydraulic cylinder Opt.
Color Red
Storage support Included
Weight including chute 323 lbs / 147 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

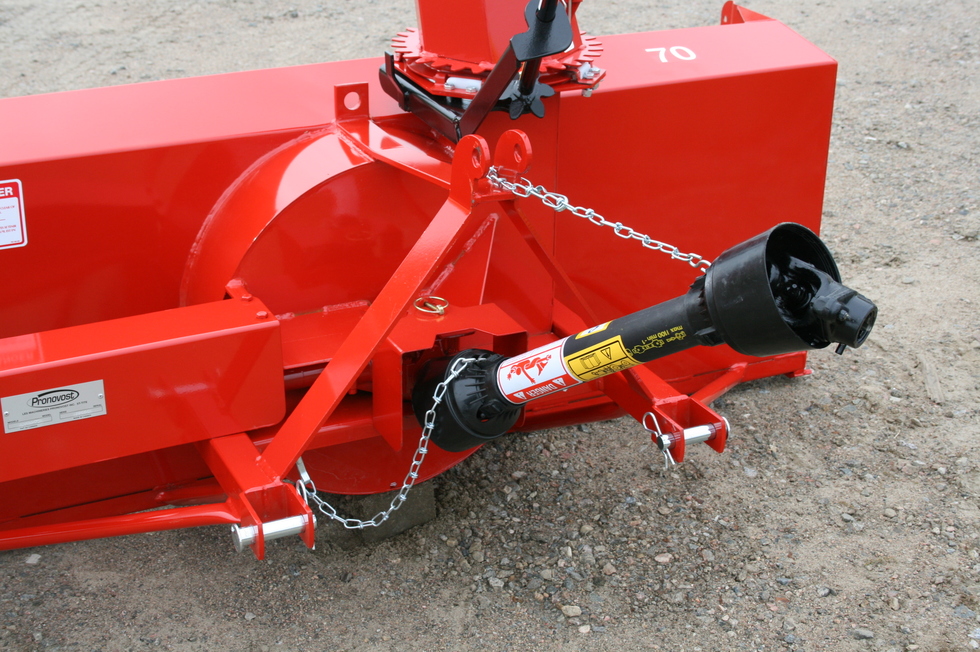

  • Lynx G01

    Model LYNX-70

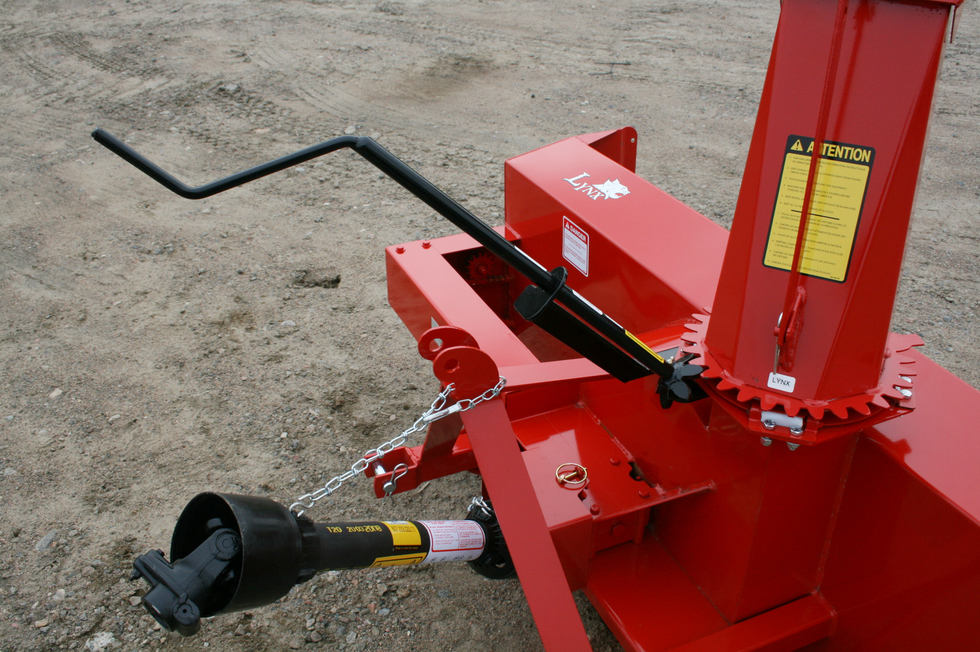

  • Lynx G02

    Model LYNX-70

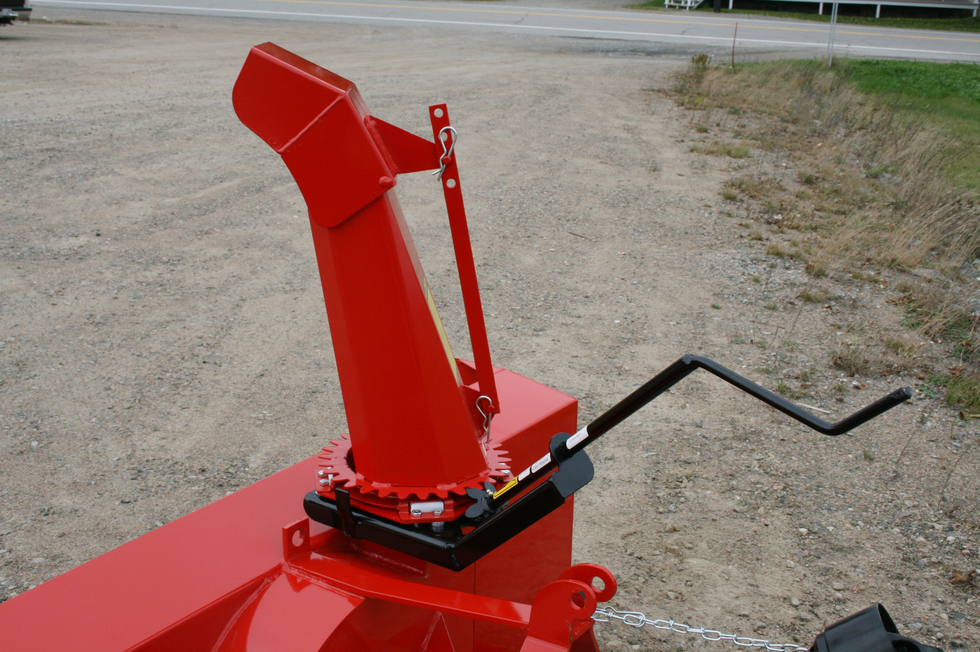

  • Lynx G03

    Model LYNX-70

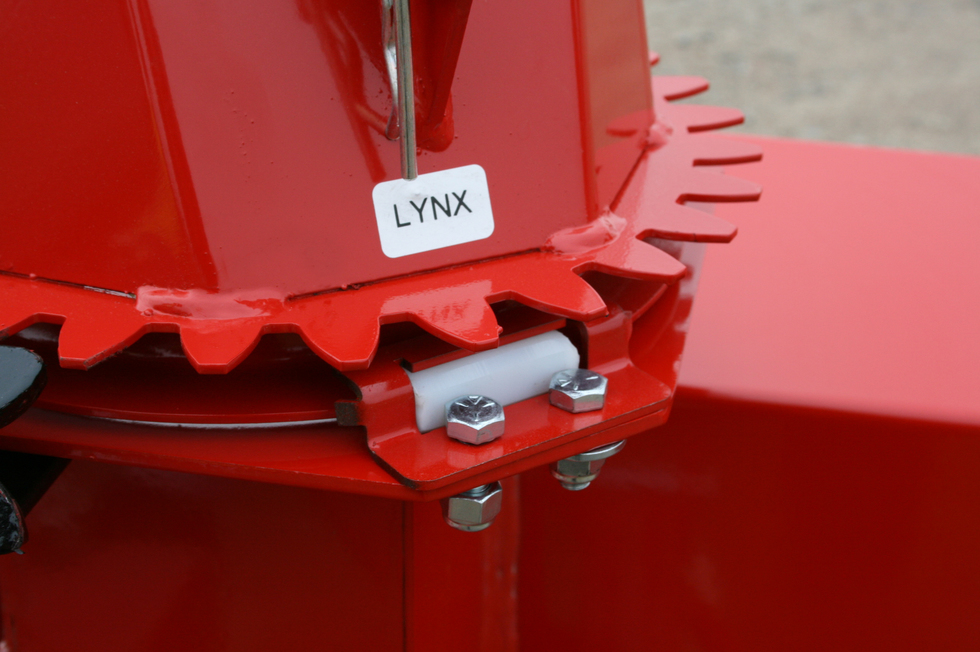

  • Lynx G04

    Model LYNX-70

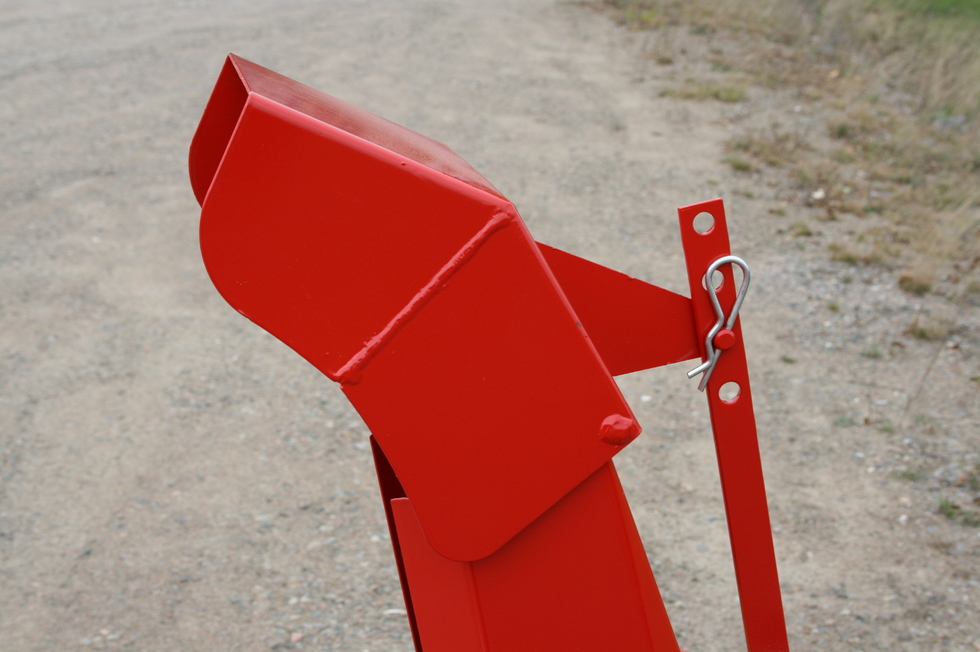

  • Lynx G05
