H3-9834 / H3-9834TRC

H3 9834
  1. H3 9834 A
  2. H3 9834 C
  3. H3 9834 B

Working width

98" / 2489 mm

HP recommended

100 to 150 HP PTO

Cutting height 48" / 1219 mm
Drum diameter 34" / 864 mm
Weight Reg. : 2249 lbs / 1020 kg TRC : 2461 lbs / 1116 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Semi-industrial chute with greasable hinges, no access panel. HSI-92104

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Hydraulic cylinder (included) 25TR08
  • Hose support for deflector cylinder
TSB-74104

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor (included) MLH-315-R

HOSE KITS

Pkb

PKB-GR3

Pkb

PKB-GR3TRC

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR3
Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR3TRC

UPPER AUGER 14" DIAMETER

Upper auger 14" diameter, including accessories VS2-980

SPEED REDUCER

Prh 30 M 2

PRH-30M-2

Prh 25 M 2

PRH-25M-2

Pr3 G200 2

PR3G200-2

Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c PRH-30M-2
Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c PRH-25M-2
Reducer 1000/555 (200 HP at 1000 RPM) 3 gears - 8" c/c PR3G200-2

CHOICE OF POWER TAKE-OFF (PTO)

T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225
T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569
T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9569-1
V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225-V
V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569-V
T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9475
T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9475-1
T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9475-2
V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9598
V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9599
V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9604

HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)

Hydraulic motor (included on TRC model) MLH-315-R

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain for your specific requirements.

Hyd2 Har

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

*Available only on a new snowblower made in production.

Roues Wheels 1 Har

Complete specifications

HP recommended (min. - max.) 100 to 150 HP PTO
Working width 98" / 2489 mm
Cutting height 48" / 1219 mm

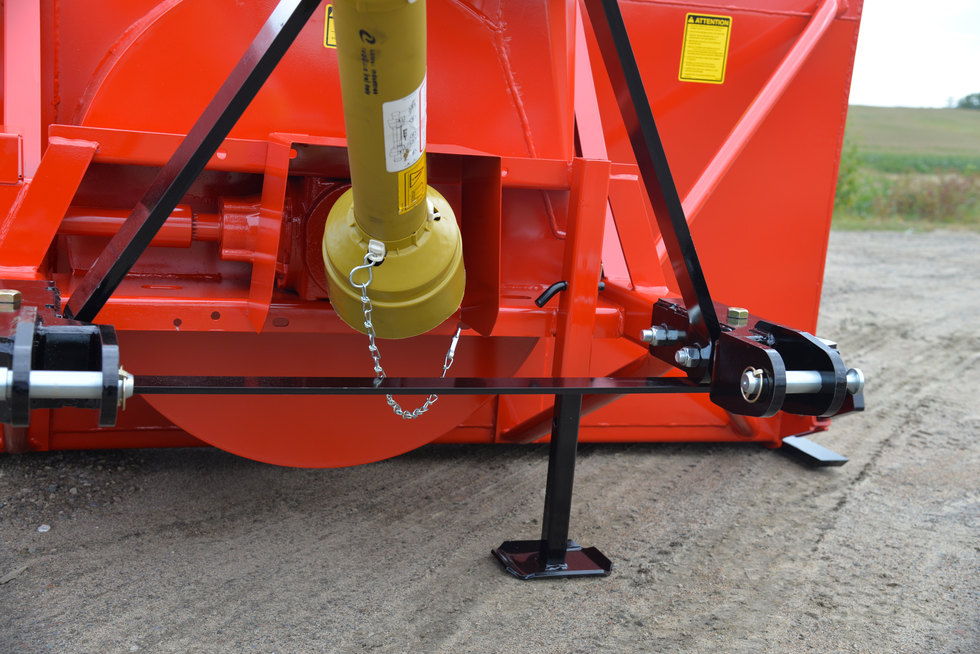

Hitch category 2 - 34 1/2" / 876 mm c/c
Impeller diameter 34" / 864 mm
Depth of drum 15" / 381 mm
Impeller housing contour : High quality steel Included
Number of impeller blades 6
Impeller shaft diameter 2" / 51 mm
Height of impeller center 21 1/2" / 546 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 1 opt. 2
Main auger diameter 26" / 660 mm
Upper auger diameter Opt. - 14" / 355 mm
Bearing / ductile iron housing 1 1/2" / 38 mm
Drive chain - Main auger 100
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c Opt.
Reducer 1000/555 RPM - 200 HP at 1000 RPM - 3 gears - shafts 8" c/c Opt.
1000/540 RPM drop box with two choices of input shafts Opt.
Drive shaft included (optional) T80 (V80 & T90 & V90)
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened

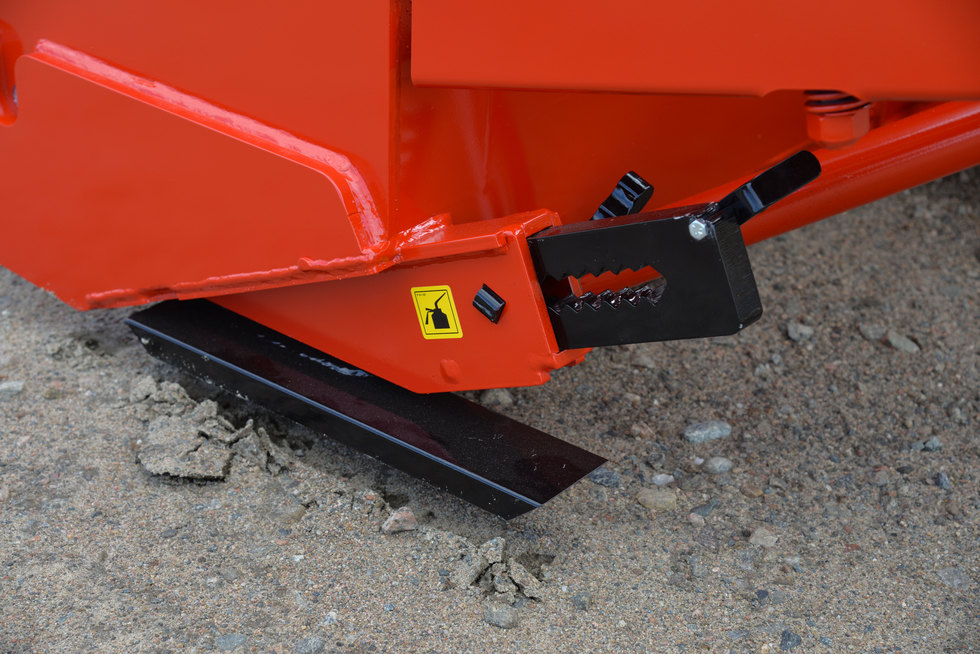

Adjustable skid shoes - Quick adjustment high quality steel Included
Chute - Semi-industrial with greasable hinges, no door Included

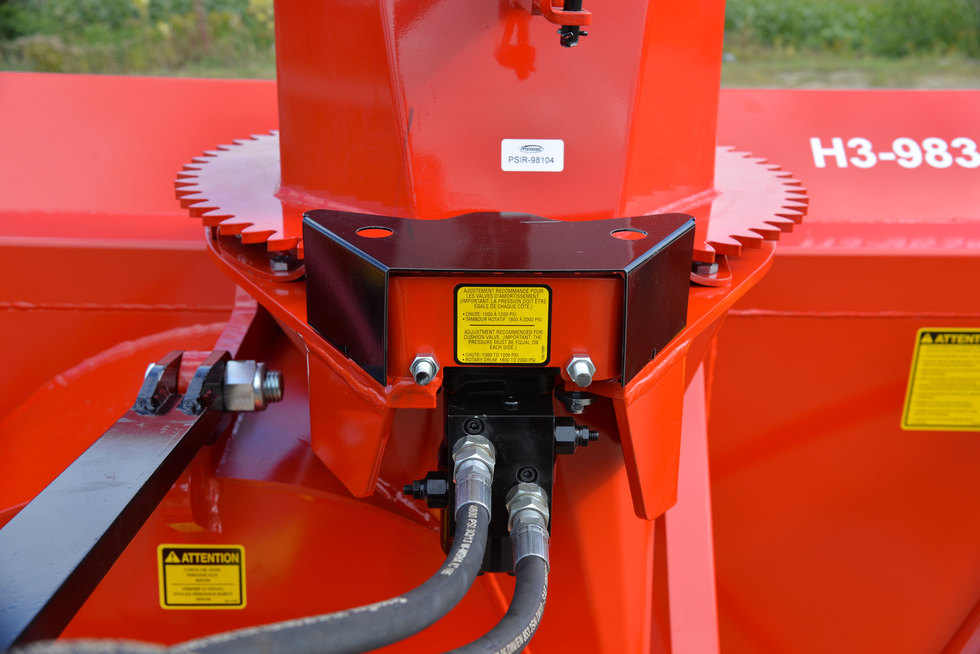

Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 305°
Antifriction for chute Included : ring
Deflector - Hydraulic cylinder Included
Color Included : Red
Storage support Included
Weight Reg. : 2249 lbs / 1020 kg TRC : 2461 lbs / 1116 kg
Weight including chute 2249 lbs / 1020 kg
Weight including chute (TRC model) 2461 lbs / 1116 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

  • H3 9834 G03

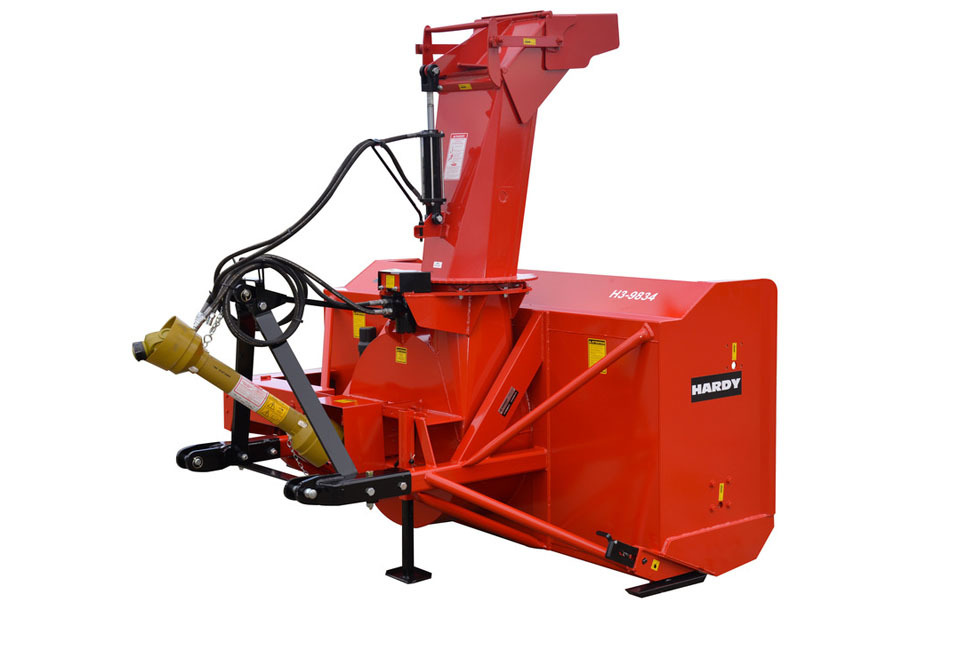

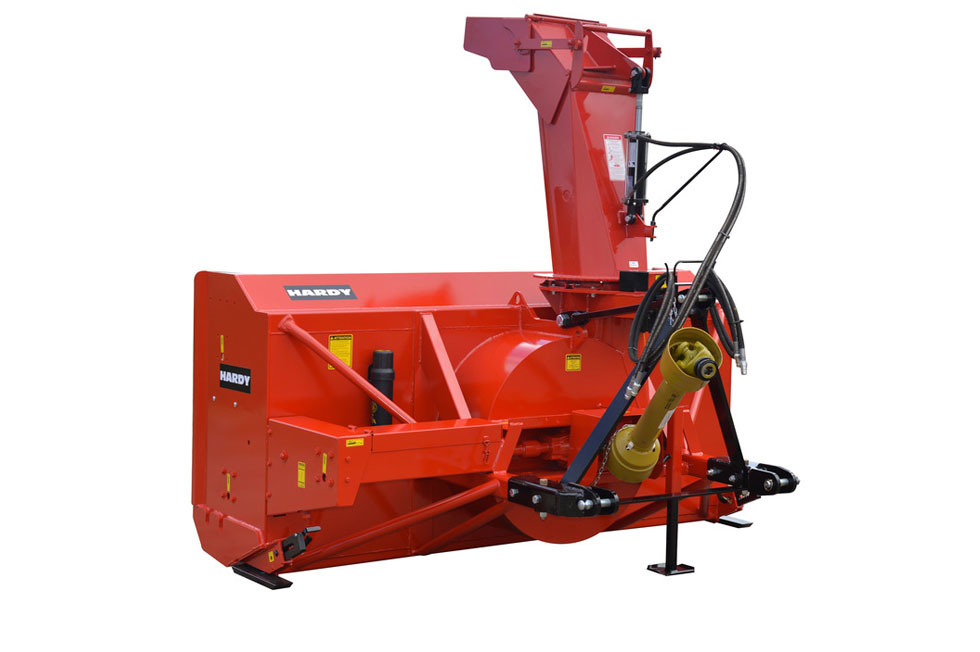

    Model H3-9834
