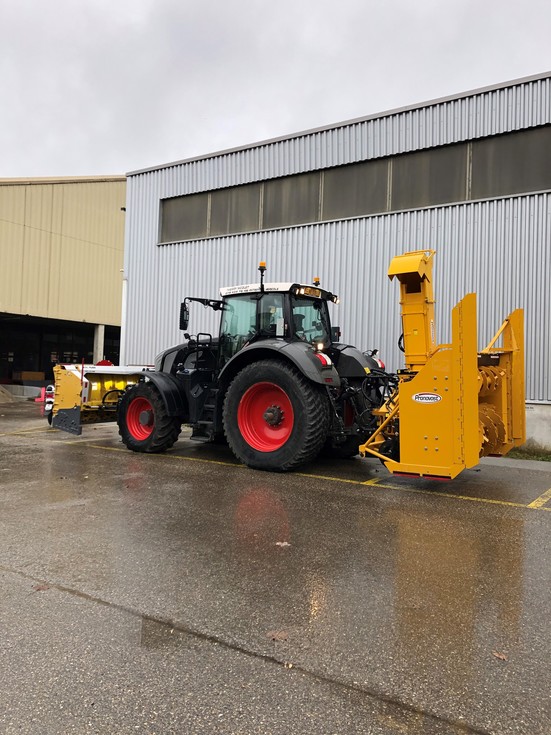

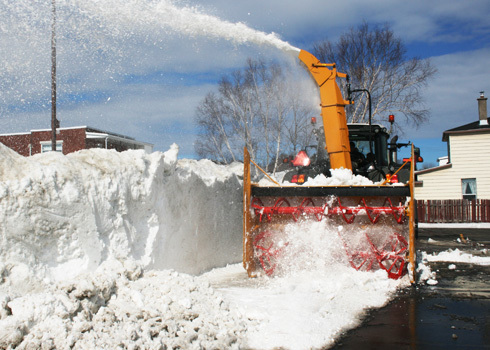

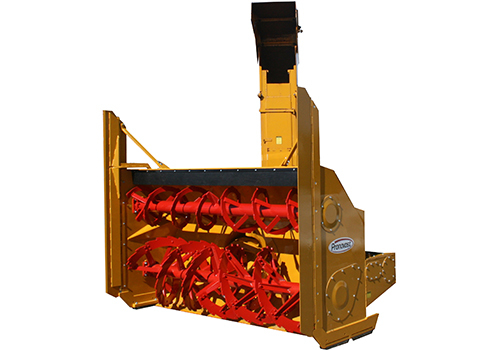

PGV-1202TRC
Working width |
118 1/4" / 3004 mm |
HP recommended |
225 to 350 HP PTO |
| Cutting height | 68 1/4" / 1734 mm |
| Approx. performance | 2500 tons imp. / hour (tractor 225 HP) |
| Weight | 5663 lbs / 2569 kg |
Options
CHOICE OF CHUTE
PCTC-IND
PCTC-INDR
| Hydraulic telescopic industrial chute, a versatile chute for general use, including deflector cylinder, chute extension cylinders and 2 hose supports, Carbon steel chute and deflector backs, greasable hinges. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. | PCTC-IND |
|
PKL-IND92104 |
| Hydraulic telescopic industrial chute with rounded deflector designed for truck loading, greasable hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders and hose support. Kit of two unidirectional restrictors RSP-1/16x10 ORB included. | PCTC-INDR |
|
PKL-INDR |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-315-R |
HOSE KITS
PKB-GR3TRC
| Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. | PKB-GR3TRC |
| Kit for TRC models with telescopic chute PCT-92104, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR3TRC-T |
| Kit for TRC models with telescopic chute with round deflector PCTC-INDR, also includes hoses for chute lift cylinders and cylinder for round deflector adjustment. * Installation not included. | PKB-GR3TRC-TR |
| Hose kit for hydraulic lateral blades option. Includes hydraulic hoses connecting the tractor oil outlets to the lateral blades cylinder. * Installation not included. | PKB-IND-CLH |
LATERAL BLADES
Included
CL-1022PGV
CLH-1022PGV
| Lateral blades, standard steel 1/2" x 5 3/4" x 75 1/2" | Included |
| Lateral blades, Hardox 450 5/8" x 5 3/4" x 96 1/2" | CL-1022PGV |
| Hydraulic lateral blades 96 1/2" (cylinder 25TR08 included) | CLH-1022PGV |
SKID SHOES
PHCT-PGV
| Lateral skid shoe with extra long life sole for sidewalk (right side or left side) | PHCT-PGV |
SPEED REDUCER
PR3G250-2.5
PR26-250-2.5
| Reducer 1000/562 (300 HP at 1000 RPM) 3 gears - 10" c/c (350 HP at 1000 RPM with oil cooler RH250-PGV-1022) | PR3G250-2.5 |
| Speed reducer and inverter (300 HP at 1000 RPM) - 2 gears - 100/562 – shafts 6 3/4" c/c (casing ready for connecting the oil cooler RH250-PGV-1022) (350 HP at 1000 RPM with oil cooler RH250-PGV-1022) | PR26-250-2.5 |
| Speed reducer with 2 input choices 1000/540. Inverter and non-inverter 500 HP. | PRH-60M-3 |
CHOICE OF POWER TAKE-OFF (PTO)
| V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9599 |
| V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9604 |
| V12 Multilobe PTO 1 3/4"-20 X 1 3/4"-20 (1000 RPM) | 400-00601 |
OIL COOLER
| Oil cooler (pump and tank) recommended for 300 HP and over. | RH250-PGV-1022 |
LATERAL PROTECTOR
| Lateral protector in Tivar for protection of snow loading equipment. | PL-IND |
KIT OF 3 OR 4 DIVERTERS WITH JOYSTICK
| Kit of 3 electric directionnal control valves to control 4 hydraulic functions (chute deflector, chute rotation, telescopic chute and TRC drum) including universal mounting bracket, hoses and fittings. | KVD-3IND |
| Kit of 4 electric directionnal control valves to control 5 hydraulic functions (chute deflector, chute rotation, telescopic chute, TRC drum and hydraulic lateral blades) including universal mounting bracket, hoses and fittings. | KVD-4IND |
| Kit of joystick controller 4 buttons with cables and connector. Installs on a hydraulic lever or tractor. Compatible for KVD-3IND + KVD-4IND. | KVD-IND-M4 |
| Wiring harness and connector 20. | KVD-IND-H20 |
Other recommended products
Additional Information
HYDRAULIC DRIVEN
It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
HYDRAULIC WHEELS
Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.
- Practical to avoid blowing gravel.
- Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.
Contact your Pronovost dealer to obtain a quote for your specific requirements.
*Available only on a new snowblower made in production.
Complete specifications
| HP recommended (min. - max.) | 225 to 350 HP PTO |
| Approximate performance | 2500 tons imp. / hour (tractor 225 HP) |
| Working width | 118 1/4" / 3004 mm |
| Cutting height | 68 1/4" / 1734 mm |
| Hitch category | 2 or 3 - 38 3/8" / 975 mm |
| Cutting height of lateral blades | Included : 75 1/2" / 1918 mm Opt. CL : 96 1/2" / 2451 mm Opt. CLH : 96 1/2" / 2451 mm |
| Height of chute base (TRC model) | 54 1/2" / 1384 mm |
| Height with telescopic chute (TRC model) | PCTC-IND : 131" / 3327 mm closed, 162 1/2" / 4128 mm extended PCTC-INDR : 129" / 3277 mm closed, 161" / 4089 mm extended |
| Impeller diameter | 37" / 940 mm |
| Depth of drum | 15" / 381 mm |
| Drum position | Offset of 5" right |
| Impeller housing contour : Hardox 450 | Included 3/8" |
| Number of impeller blades | 6 - 3/8" thickness, replaceable,Hardox 450 |
| Impeller shaft diameter | 2 1/2" / 64 mm |
| Height of impeller center | 24" / 610 mm |
| Rotor RPM | 540 inverted |
| Required RPM for the tractor PTO | 1000 RPM |
| Number of augers | 2 |

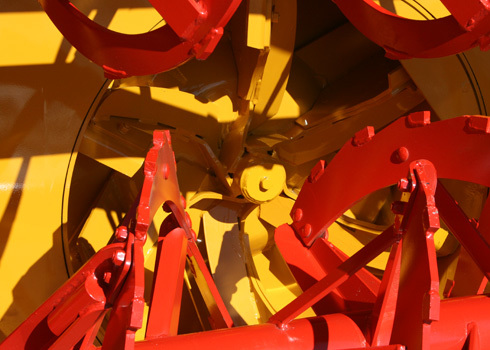

| Main auger diameter | 34" / 864 mm - removable hub, dual band, bolted, welded carbon steel teeth |
| Upper auger diameter | 20" / 508 mm - removable hub, single band, Hardox 450 welded teeth |
| Bearing / ductile iron housing | 2 1/2" / 64 mm |
| Drive chain - Main auger | Renold No. 100HV in oil bath |
| Frame - Sides | Plate 5/16" |
| Frame - Back | Plate 9 Gauge and 3/16" |
| Number of shear bolts | 1 for impeller + 1 for auger |
| Drum rotation for hydraulic motor (TRC only) | Std. |
| Drum rotation with rotation system | On antifriction with hydraulic motor, cushion valve included |
| Reducer and inverter 1000/562 RPM - 250 HP at 1000 RPM - 2 gears - shafts 6 3/4" | Included |
| Height of speed reducer shaft | Adjustable from 29 7/8" to 18" |
| Drive shaft included (optional) | V90 multilobe, choice of yoke depending on tractor |
| Oil cooler | Opt. (increases capacity to more than 300 HP) |
| Lateral blades - High quality steel | Included : 1/2" x 5 3/4" |
| Lateral blades - Hardox 450 | Opt. CL : 5/8" x 5 3/4" |
| Lateral blades - Hydraulic blades | Opt. CLH : 5/8" x 7 1/2" Hardox 450 sharpened (cylinder 25TR08 included) |
| Scraper blade - Industrial made of Hardox 450 | Included 5/8" x 6" not reversible, sharpened, assembled to 6 degrees |
| Adjustable skid shoes - Rocktec | Included 4 skid shoes, adjustement with spacers |
| Rocktec lateral skid shoe for sidewalks | Opt. (left or right side) |
| Chute - Telescopic including extension cylinders | Opt. |
| Chute - Telescopic with rounded deflector including extension and deflector cylinders | Opt. |
| Chute rotation system - Hydraulic motor kit (motor not included) | Included with MLH-315 and cushion valve |
| Chute rotation maximum angle - Hydraulic motor rotation | 305° |
| Antifriction for chute | Included : ring |
| Deflector - Hydraulic cylinder | Included with chute |
| Color | Included : Industrial yellow |
| Storage support | Included |
| Center of gravity from 3 point hitch at its shortest | 40 9/16" / 1030 mm |
| Rotational force (reference) | 229 701 lbs-po |
| Weight | 5663 lbs / 2569 kg |
| Weight including chute (TRC model) | 5663 lbs / 2569 kg including chute PCTC-IND and reducer |
Design and specifications subject to change without notice.
