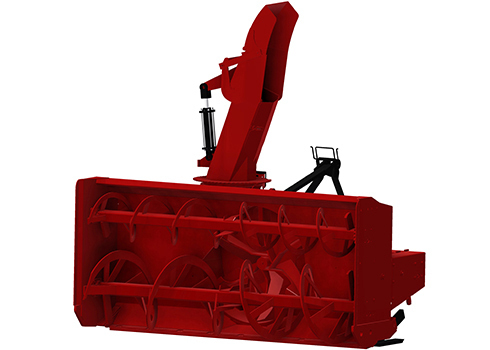

P-922 / P-922TRC

P 922

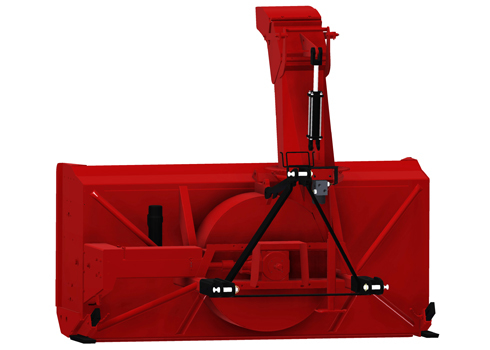

  1. P 922 A

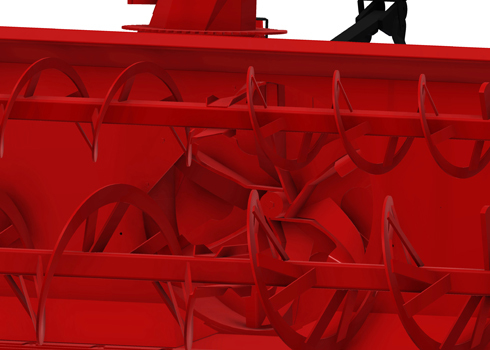

  2. P 922 B

Largeur de coupe

92" / 2337 mm

Puissance Recommandée

90 à 125 ch PdF

Hauteur de coupe 44" / 1118 mm
Diamètre du tambour 34" / 864 mm
Poids Reg. : 2240 lbs / 1016 kg TRC : 2540 lbs / 1152 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 7486

PSIG-7486

Pcg 7486

PCG-7486

Prp 92104 2

PRP-7486-2

Prp 92104

PRP-7486

Pct 7486 Hd

PCT-7486-HDB

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-7486
Quick attach industrial chute with greasable hinges and access panel (removable) PCG-7486
  • 24" Extension for industrial chute
PRP-7486-2
  • 48" Extension for industrial chute
PRP-7486
Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. PCT-7486-HDB
  • Mounting kit for working light on telescopic chute.
PKL-IND-7486

CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR

Hydraulic cylinder (included) 25TR08
  • Hose support for deflector cylinder
TSB-74104
Manual telescopic tube T-74104

HYDRAULIC MOTOR FOR CHUTE ROTATION

Hydraulic motor (included) MLH-315-R

HOSE KITS

Pkb

PKB-GR3

Pkb

PKB-GR3TRC

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR3
Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. PKB-GR3TRC
Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3-T
Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. PKB-GR3TRC-T

LATERAL BLADES

Cl 8292

CL-8292

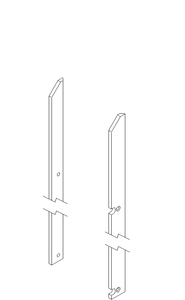

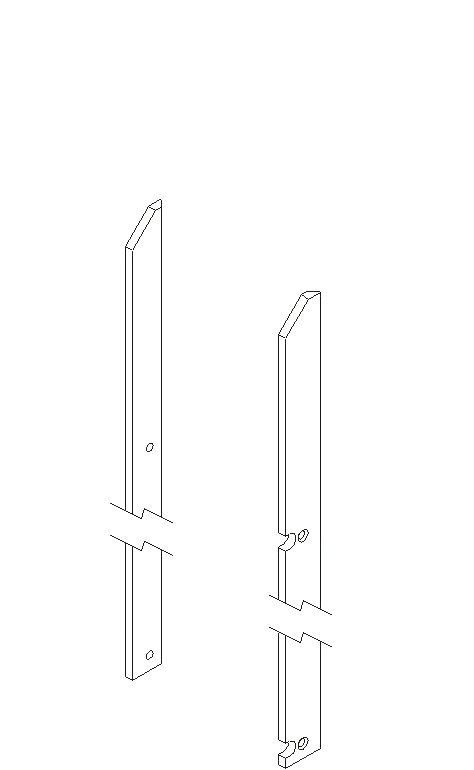

Lateral blades, high quality steel 3/8" x 4" x 62" CL-8292

SCRAPER BLADE

Sit1gr2

SIT1-92

T1gr2

T1-92

T Vgr2

TV-92

Ss Tgr2

SST-92

Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened SIT1-92
Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened T1-92
Tivar scraper blade including mounting kit TV-92
Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened SST-92

SKID SHOES

Phd

PHD-92104

Pshd

PSHD-92104

Pst

PST-92104

Industrial skid shoes with Hardox 450 soles PHD-92104
Skid shoes with ROCKTEC soles PSHD-92104
Skid shoes with stainless steel soles PST-92104

FULL FLIGHT SPIKED MAIN AUGER

Vi Pnew2

VIP2-992

Full flight serrated main auger VIP2-992

SPEED REDUCER

Prh 30 M 2

PRH-30M-2

Prh 25 M 2

PRH-25M-2

Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c PRH-30M-2
Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c PRH-25M-2

CHOICE OF POWER TAKE-OFF (PTO)

T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225
T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569
T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9569-1
V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9225-V
V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9569-V
T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9475
T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9475-1
T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9475-2
V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) 9598
V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) 9599
V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) 9604

HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)

Hydraulic motor (included on TRC model) MLH-315-R

IMPELLER HOUSING

Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel TBHD-3412
Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) TBHD-3412TRC

RUBBER DEFLECTOR FLAP

Rubber deflector flap located from the top of the frame to the auger. Reduces projections. TL-9298

CHOICE OF COLORS

Red PRONOVOST
Blue PG2-02
Orange PG2-04
Yellow INDUSTRIAL PG2-06
Green PG2-07
Black PG2-10

Other recommended products

Additional Information

HYDRAULIC DRIVEN

It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

Hyd22

HYDRAULIC WHEELS

Hydraulic wheels permit using the snowblower at a constant height from the ground without scraping it.

  • Practical to avoid blowing gravel.
  • Permit snowblowing on a grassy surface while avoiding direct contact of the blade with the ground.

Contact your Pronovost dealer to obtain a quote for your specific requirements.

*Available only on a new snowblower made in production.

Roues Wheels 1

Ice scraper blade for snowblowers

The ice scraper blade is installed under the snowblower, easily and requires no tool.
Scrape icy surfaces to create a grooved finich that increases grip.

Its design requires no additional oil outlet or any modification to the snowblower.
When required, the ice scraper blade must be assembled to the snowblower and then disassembled after use.

Couteauglace 1

Hydraulic flotation ski for snowblowers

The hydraulic flotation ski allows you to use the snowblower at a constant height above the ground, without scraping it.

Allows you to compact a hard and uniform snow bottom in the gravel entrances while preventing gravel from entering the snowblower. Allows you to blow on a grassy surface while avoiding contact of the snowblower blade with the ground.

Skiflottaison 25

Complete specifications

HP recommended (min. - max.) 90 to 125 HP PTO
Working width 92" / 2336 mm
Cutting height 44" / 1118 mm
Hitch category 2 - 34 1/2" / 876 mm c/c
Cutting height of lateral blades Opt. CL : 62" / 1575 mm
Height with telescopic chute PCT-7486-HD : 112" / 2845 mm closed, 144" / 3658 mm extended
Height with telescopic chute (TRC model) PCT-7486-HD : 117" / 2972 mm closed, 149" / 3785 mm extended
Impeller diameter 34" / 864 mm
Depth of drum 12" / 305 mm
Impeller housing contour : High quality steel Included
Impeller housing contour : Hardox 450 Opt.
Number of impeller blades 6
Impeller shaft diameter 2" / 51 mm
Height of impeller center 21" / 533 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM Opt. 1000 RPM
Number of augers 2
Main auger diameter 23" / 584 mm
Upper auger diameter Included - 14" / 355 mm
Bearing / ductile iron housing 1 1/2" / 38 mm
Drive chain - Main auger 80
Number of shear bolts 1 for impeller + 1 for auger
Drum rotation for hydraulic motor (TRC only) Std.
Reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c Opt.
Drive shaft included (optional) T80 (V80, T90 &V90)
Lateral blades - High quality steel Opt. CL : 3/8" x 4"
Scraper blade - High quality steel Included 1/2" x 4" reversible, not sharpened
Scraper blade - Semi-industrial made of Hardox 450 Opt. 1/2" x 4" reversible, not sharpened
Scraper blade - Industrial made of Hardox 450 Opt. 1/2" x 6" not reversible, sharpened
Scraper blade - Tivar Opt. 1" thickness, not reversible, not sharpened
Scraper blade - Stainless steel Opt. 1/2" x 4" reversible, not sharpened
Adjustable skid shoes - Quick adjustment high quality steel Included
Adjustable skid shoes - Quick adjustment Hardox 450 Opt.
Adjustable skid shoes - Quick adjustment Rocktec Opt.
Adjustable skid shoes - Quick adjustment stainless steel Opt.
Full flight main auger (industrial) Opt.
Chute - Semi-industrial with greasable hinges and removable access panel Opt.
Chute - Industrial quick attach Opt.
Chute - 24" or 48" extension Opt.
Chute - Telescopic including extension cylinders Opt.
Chute rotation system - Hydraulic motor kit (motor not included) Included
Chute rotation maximum angle - Hydraulic motor rotation 335°
Antifriction for chute Included : ring
Deflector - Manual Opt.
Deflector - Hydraulic cylinder Opt.
Color Included : Red Pronovost Opt. : Choice of 5 colors
Storage support Included
Weight including chute 2240 lbs / 1016 kg
Weight including chute (TRC model) 2540 lbs / 1152 kg

Design and specifications subject to change without notice.

Videos

No video for this product

Photo gallery

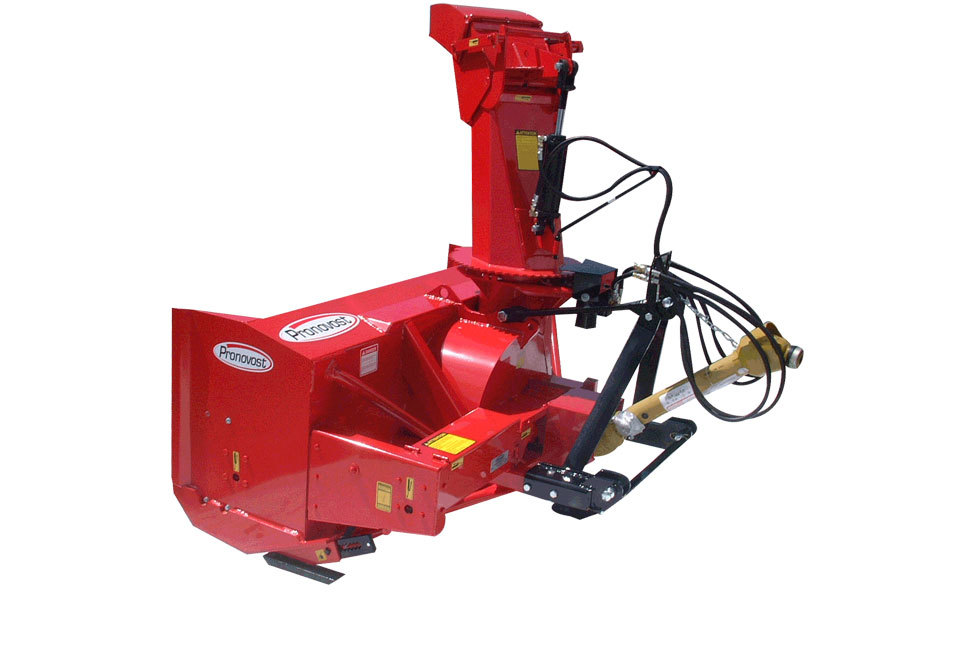

  • P 740 G02

    Modèle P-740 avec cylindre 25TR08 pour ajustement du déflecteur

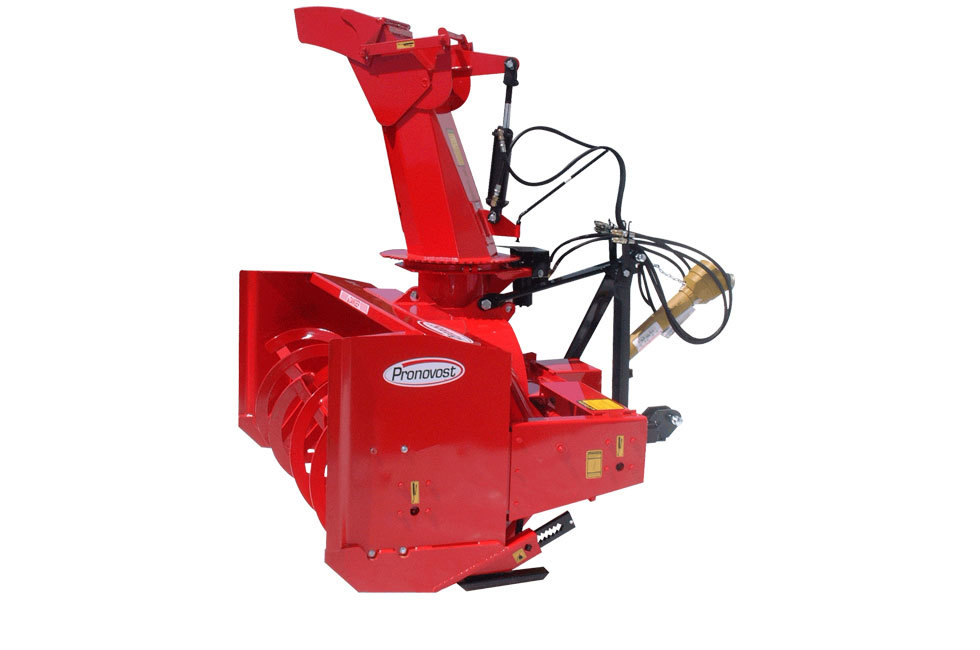

  • P 740 G01

    Modèle P-740 avec cylindre 25TR08 pour ajustement du déflecteur

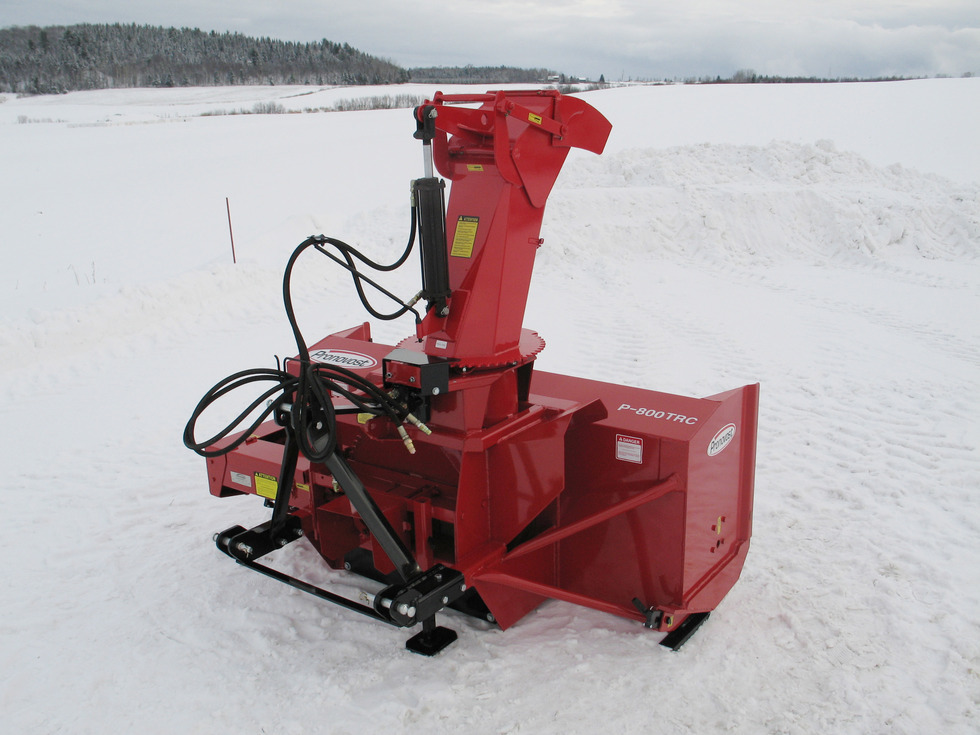

  • P 800 Trc G03

    Modèle P-800 avec option TRC, chute PSIG-7486, cylindre 25TR08 pour ajustement du déflecteur

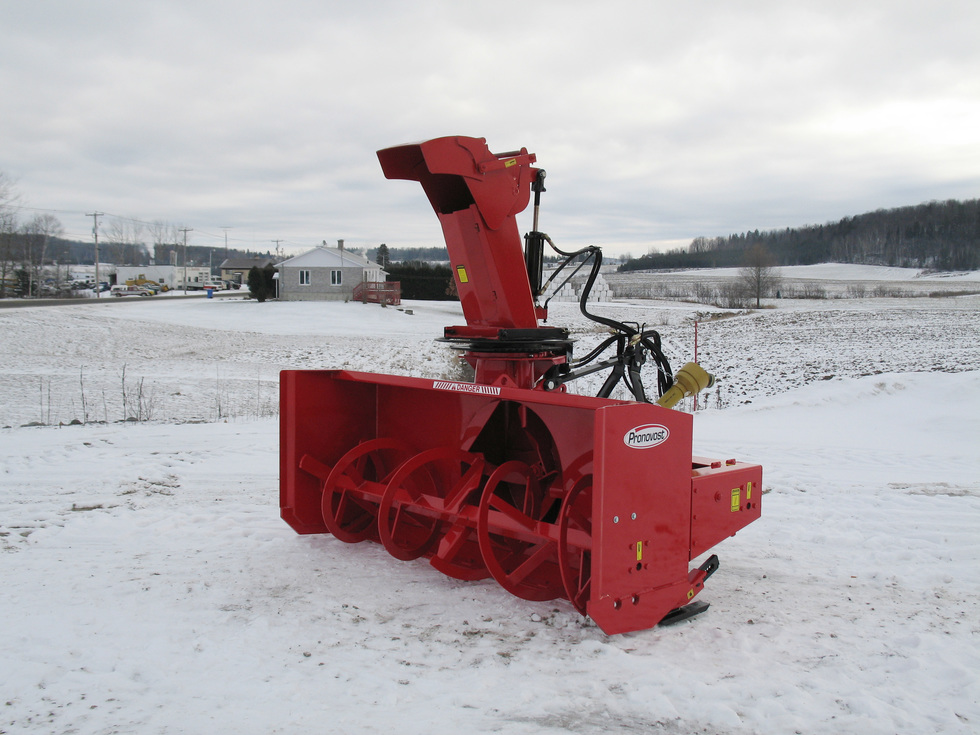

  • P 860 G01
