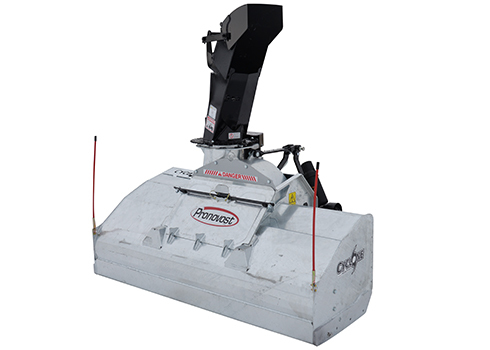

C7224

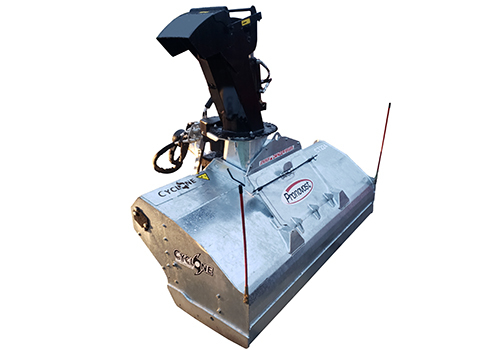

C7224 A
  1. C7224

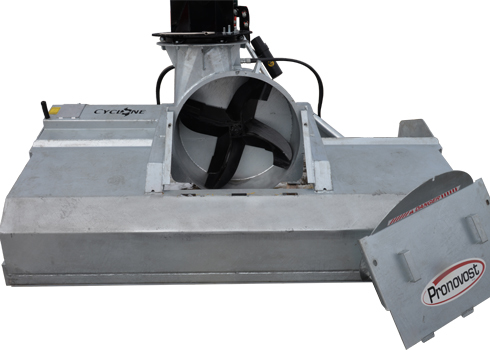

  2. Cyclone B

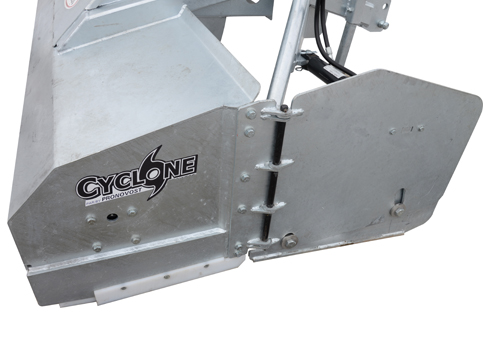

  3. Cyclone D

Working width

72" / 1829 mm

HP recommended

25 à 40 CH PDF

Cutting height 24" / 610 mm
Drum diameter 24" / 610 mm
Weight 987 lbs / 449 kg
Add to compare
Download the flyer

Options

CHOICE OF CHUTE

Psig 5472

PSIG-5472

Pc3 C Gr1.5

PC3C-GR1

Semi-industrial chute with greasable hinges and access panel (removable) PSIG-5472
3-Deflector semi-industrial chute with greasable hinges and removable access panel. PC3C-GR1

HOSE KITS

Pkb

PKB-GR1

Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. PKB-GR1
Hose kit for hydraulic wings function, for tractor with 4 oil outlets. IMPORTANT NOTE: The action of each hydraulic wing controlled separately is strongly recommended. Connecting both hydraulic wings with a "T" can lead to uncontrolled opening of a wing and cause breakage to nearby obstacles. * Installation not included. PKB-CO-80-2
Hose kit for hydraulic wings function, for tractor with 3 oil outlets. IMPORTANT NOTE: The action of each hydraulic wing controlled separately is strongly recommended. Connecting both hydraulic wings with a "T" can lead to uncontrolled opening of a wing and cause breakage to nearby obstacles. * Installation not included. PKB-CO-72-DV
Hose kit for hydraulic wings function, for tractor with 2 oil outlets. IMPORTANT NOTE: The action of each hydraulic wing controlled separately is strongly recommended. Connecting both hydraulic wings with a "T" can lead to uncontrolled opening of a wing and cause breakage to nearby obstacles. * Installation not included. PKB-CO-72-DV2

SCRAPER BLADE

Sit1 C92

SIT1-C72

Sst C92

SST-C72

Tv C92

TV-C72

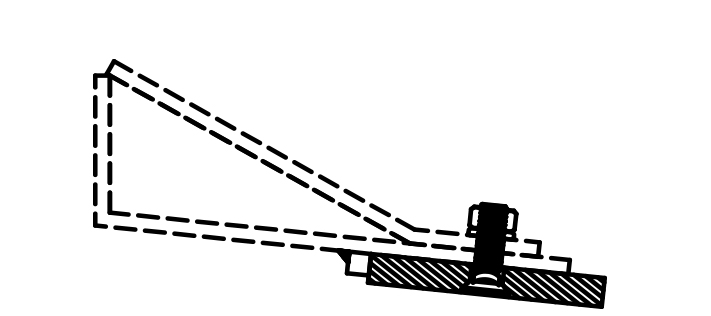

Scraper blade, Hardox 450, reversible, not sharpened 1/2" x 3 1/2" SIT1-C72

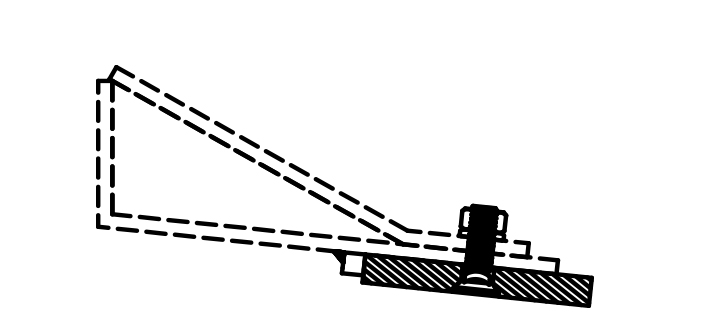

Scraper blade, stainless steel, reversible, not sharpened 1/2" x 3 1/2" SST-C72

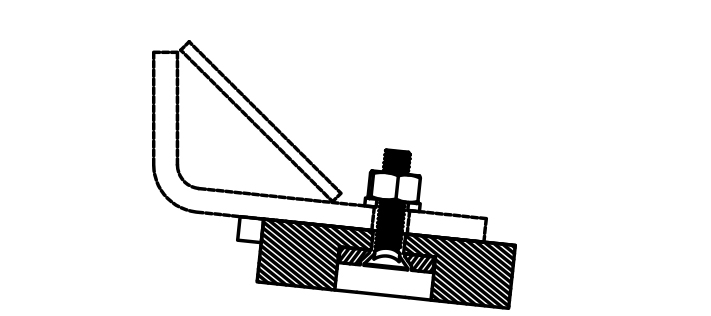

Scraper blade, Tivar, 3/4" x 3 1/2" x 71 3/4", reversible, not sharpened TV-C72

WINGS

Cyclone D

CO-72F

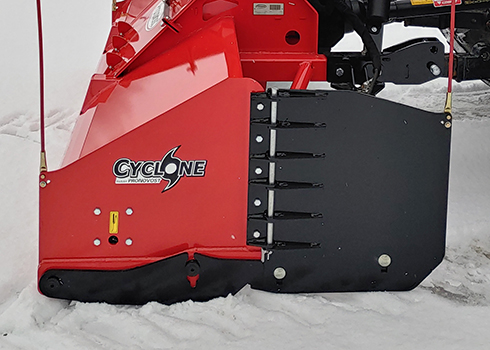

Cyclone Noire

CO-72HYD

Fixed, hot dip galvanized wings with floating skid shoes CO-72F
Fixed, black color wings with floating skid shoes. CO-72F-P
Hydraulic, hot dip galvanized wings with floating skid shoes (up to 8') and cylinder. CO-72HYD
Hydraulic, black color wings with floating skid shoes (up to 8') and cylinder. CO-72HYD-P

SKID SHOES

Frame side skid shoes, Tivar, reversible, 1 1/4" thick x 16 1/2" long, kit of 2. TVP-C80

IMPELLER HOUSING

Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel TBHD-2410.5

3 POINT HITCH KIT

Lower attachment and top link 5" higher. PM5-C80

CHOICE OF COLORS

Hot dip galvanized
Blue C72-02
Orange C72-04
INDUSTRIAL yellow C72-06
Green C72-07
PRONOVOST red C72-08
Black C72-10

Other recommended products

Additional Information

Hot dip galvanizing

What is Hot Dip Galvanizing?
Hot dip galvanizing is a metallurgical bonding of zinc to steel performed in controlled conditions in a factory setting. This simple process is characterized by exceptional corrosion resistance thanks to the molecular adhesion of the two metals, as well as cathodic protection.

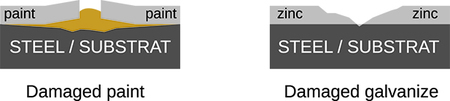

The image below shows the difference between painting and galvanizing when the coating is damaged.

Galvanize Vs Paint(Petit)

It is readily apparent that while rust quickly spreads below the paint, zinc covers the damaged area.

17 Kit(Petite)

Complete specifications

HP recommended (min. - max.) 25 to 40 HP PTO
Working width 72" / 1829 mm
Cutting height 24" / 610 mm
Hitch category 1- 26 13/16" / 681 mm
Impeller diameter 24" / 610 mm
Depth of drum 10 1/2" / 267 mm
Number of impeller blades 4
Impeller shaft diameter 1 9/16" / 40
Height of impeller center 21" / 533 mm
Rotor RPM 540 RPM
Required RPM for the tractor PTO 540 RPM
Number of augers 1
Main auger diameter 14" / 356 mm
Bearing / ductile iron housing 1" / 25 mm
Drive chain - Main auger 50H
Number of shear bolts 1 au rotor et 1 à la vis
Drive shaft included (optional) T40
Scraper blade - High quality steel Included
Scraper blade - Semi-industrial made of Hardox 450 SIT1-72 - 71 3/4"
Scraper blade - Tivar TV-C72 - 71 3/4"
Scraper blade - Stainless steel SST-C72 - 71 3/4"
Chute - Semi-industrial with greasable hinges and removable access panel PSIG-5472
Chute rotation maximum angle - Hydraulic motor rotation 270° to 345° adjustable
Antifriction for chute Ring
Color Hot dip galvanized
Weight including chute 987 lbs / 449 kg

Videos

Photo gallery

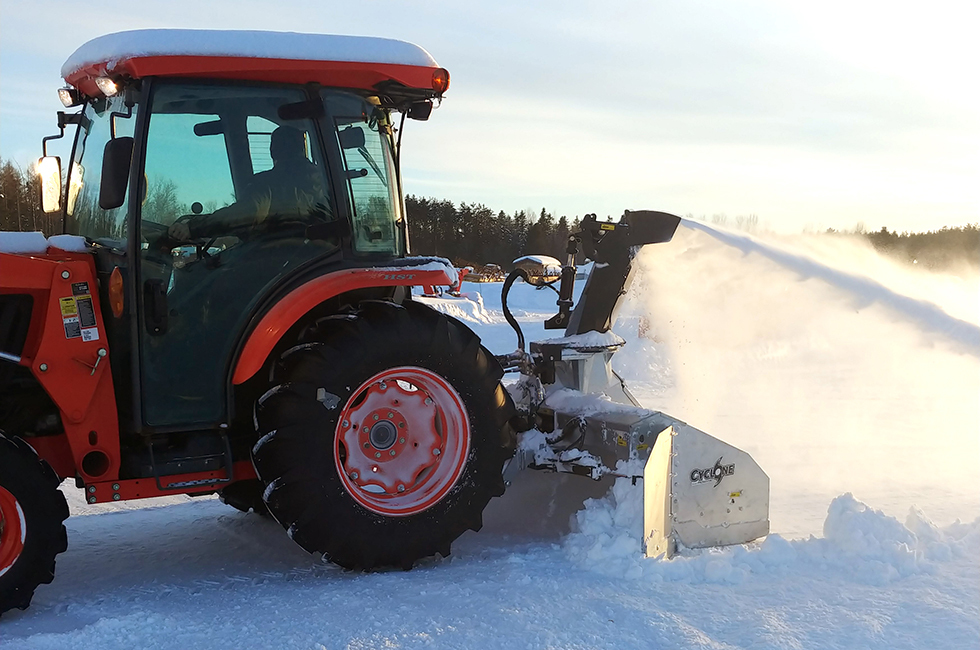

  • 20190218 164505

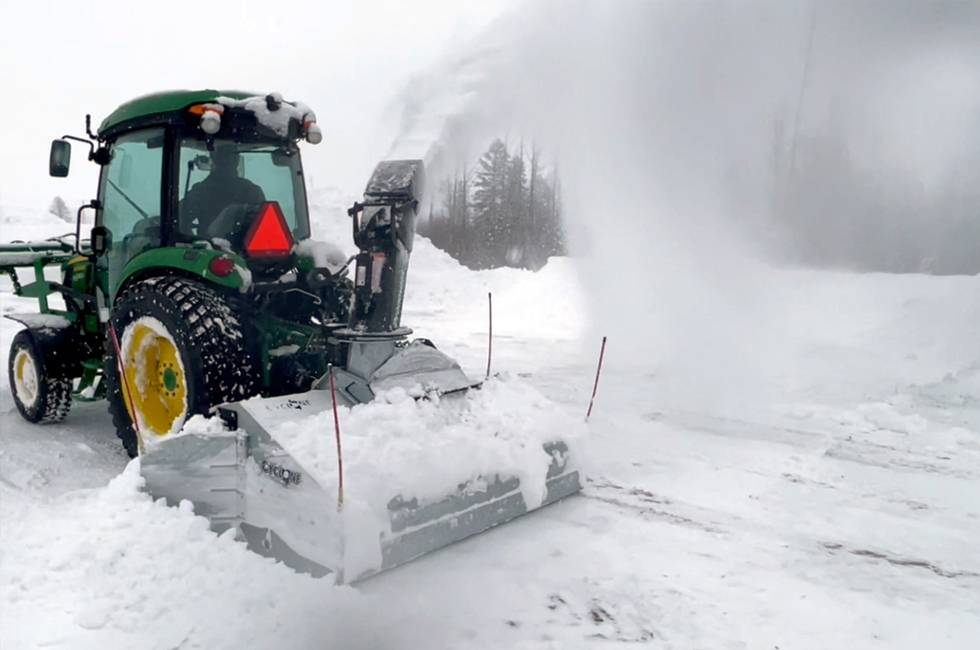

  • Cyclone05

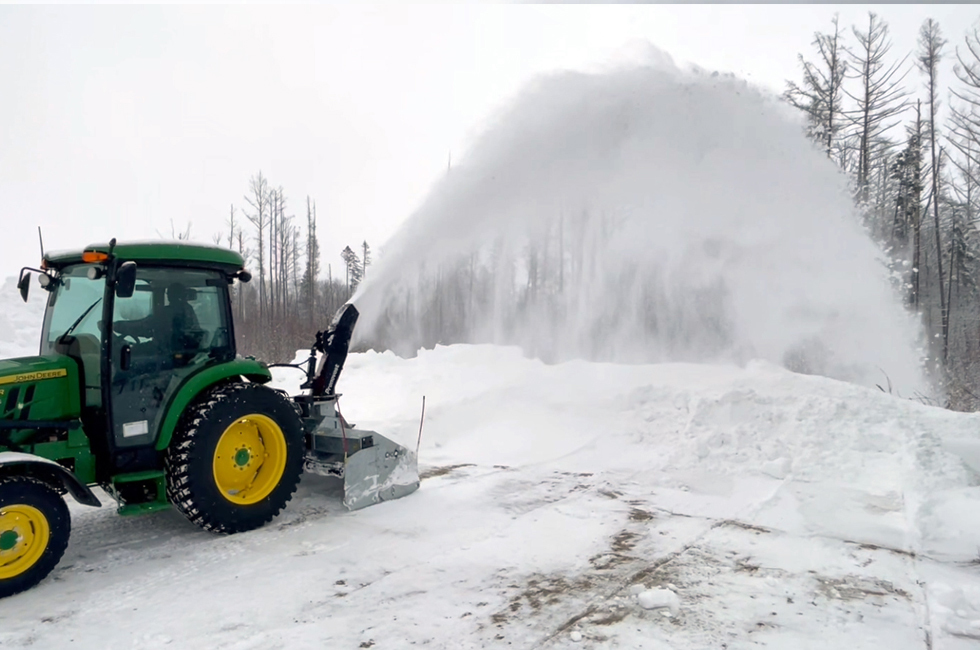

  • Cyclone02

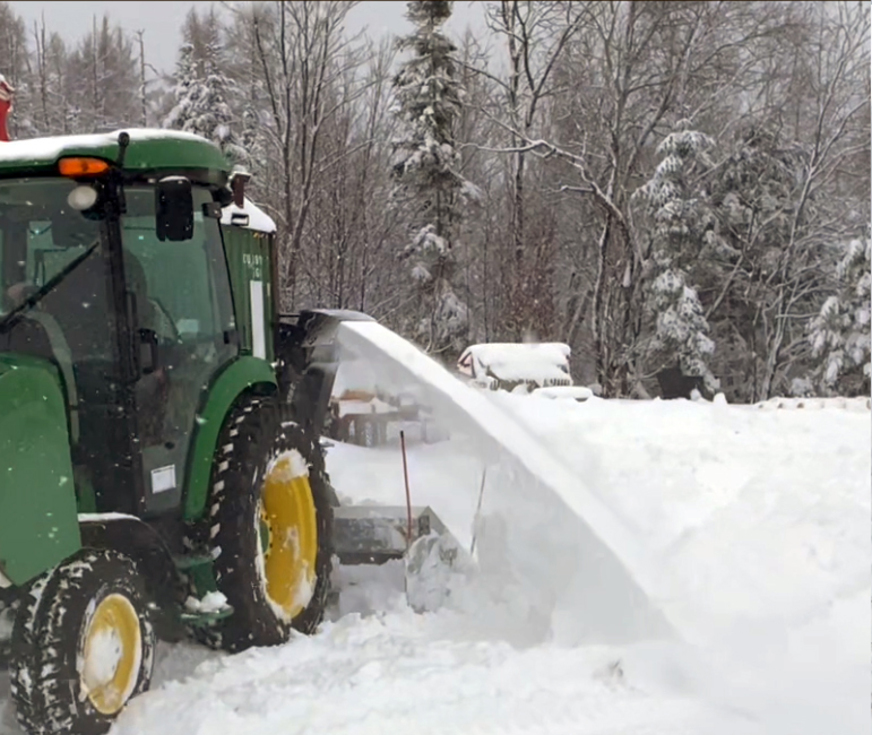

  • Cyclone06

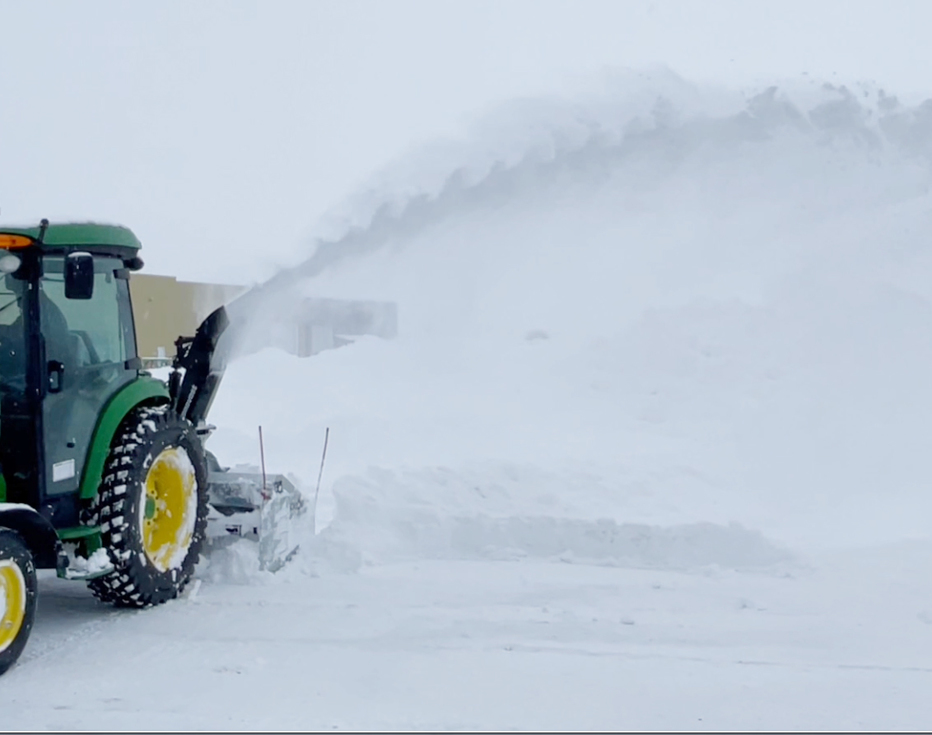

  • Cyclone09
